Take the guesswork out of tricky measurements with the StepGuide Template, an adjustable stair tread and woodworking template designed to capture lengths and angles before you make a cut. Instead of repeatedly measuring, calculating, and checking irregular corners, simply adjust the template to fit your space, lock the position, and transfer the shape directly to your material.
Built from high-strength aluminum alloy, the StepGuide Template combines modular extension bars with independently adjustable end plates. It can accommodate measuring spans from approximately 10.4 to 60 inches and angles from 0° to 360°, making it useful for stair treads, risers, shelves, cabinets, window sills, flooring, and other woodworking or renovation projects.
SPECIFICATIONS:
- Product Type: Adjustable Stair Tread & Woodworking Template
- Material: High-Strength Aluminum Alloy
- Material Thickness: Approx. 4 mm / 0.16 in

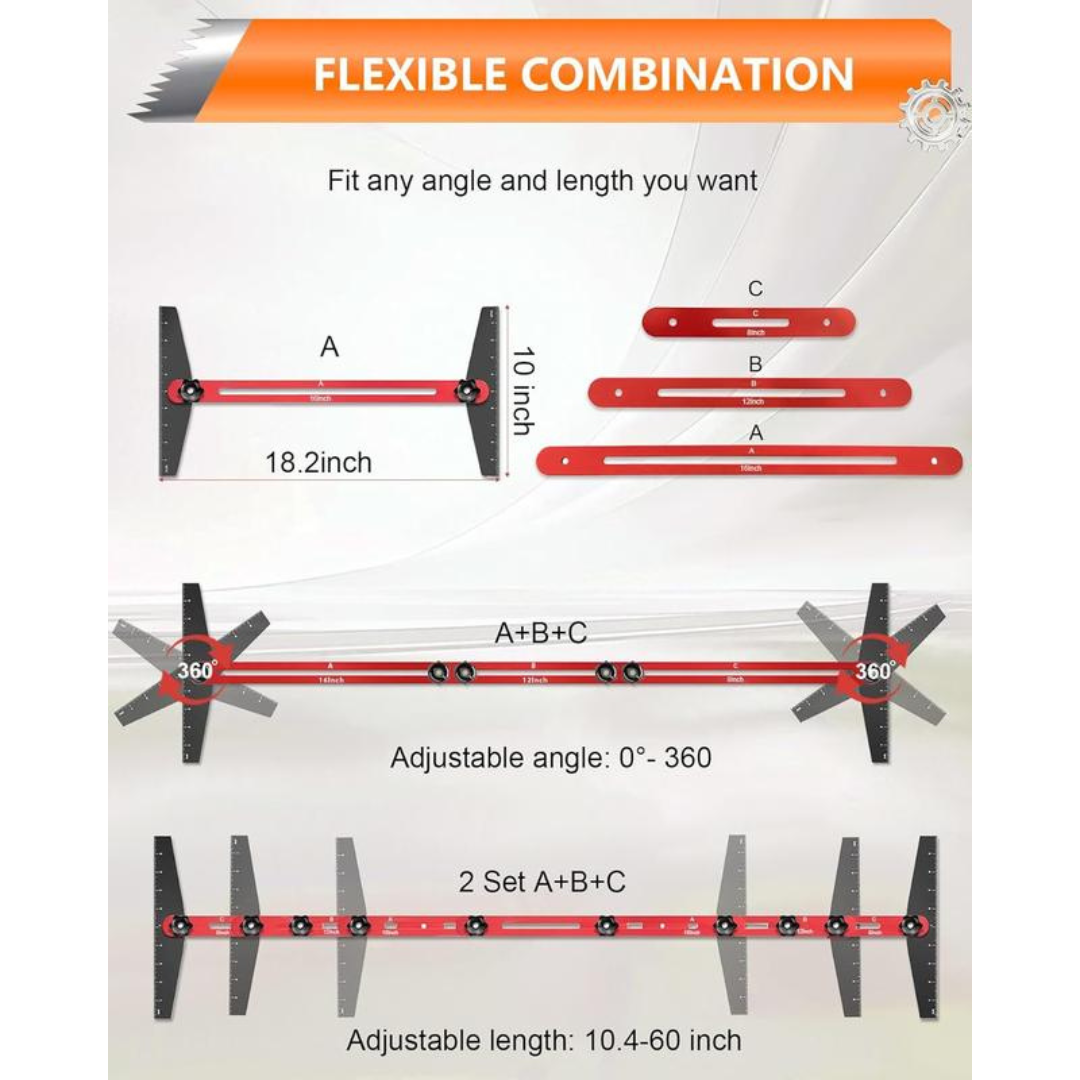

- Adjustable Length: Approx. 10.4–60 in / 26.4–152.4 cm
- Adjustable Angle: 0°–360°
- Extension Bar A: 16 in / 40.6 cm
- Extension Bar B: 12 in / 30.5 cm
- Extension Bar C: 8 in / 20.3 cm
- Extension System: Modular Combination
- End Plates: Independently Adjustable

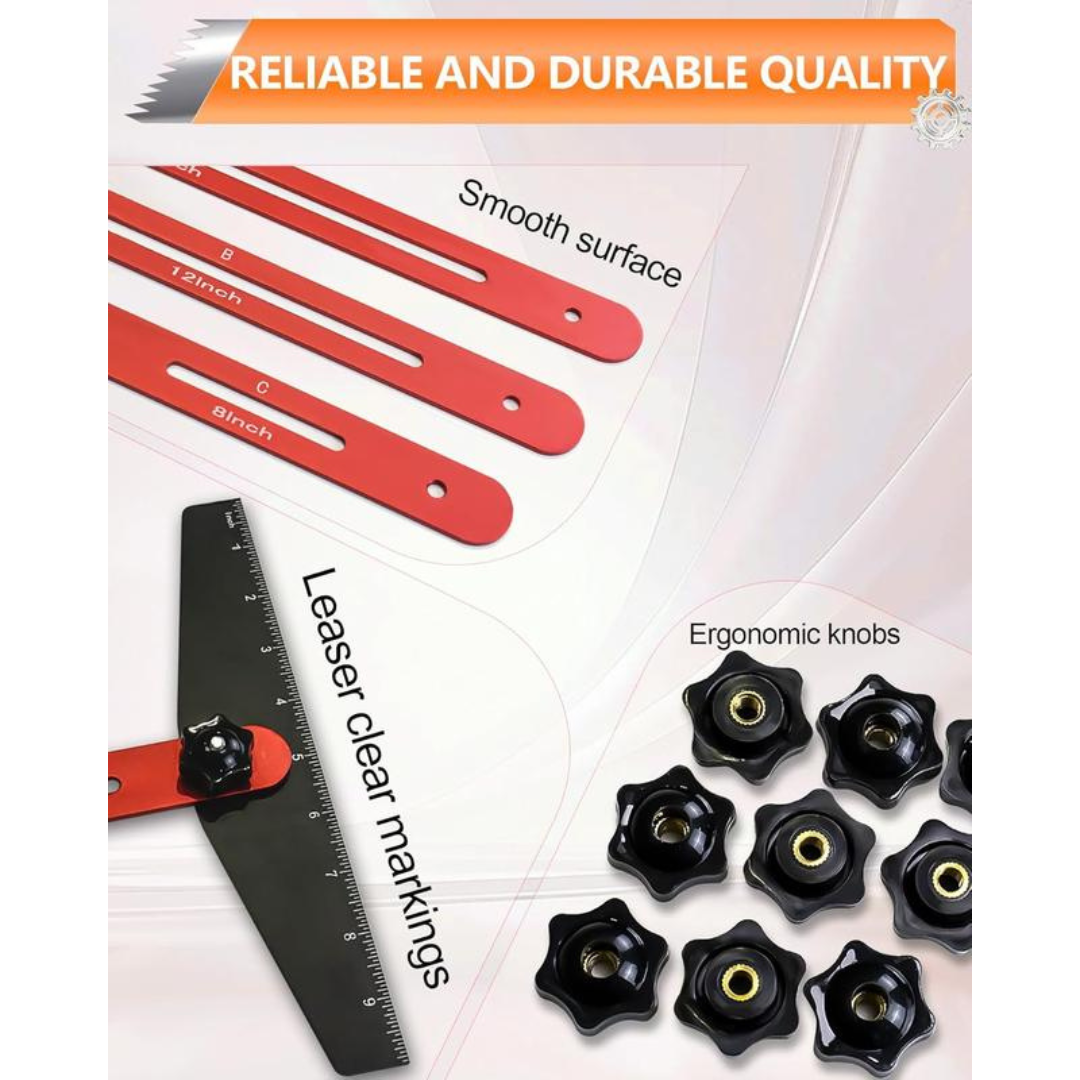

- Scale: Laser-Etched Measurement Markings
- Surface Treatment: CNC Anodized Finish
- Locking System: Adjustable Knobs with Rubber Gaskets

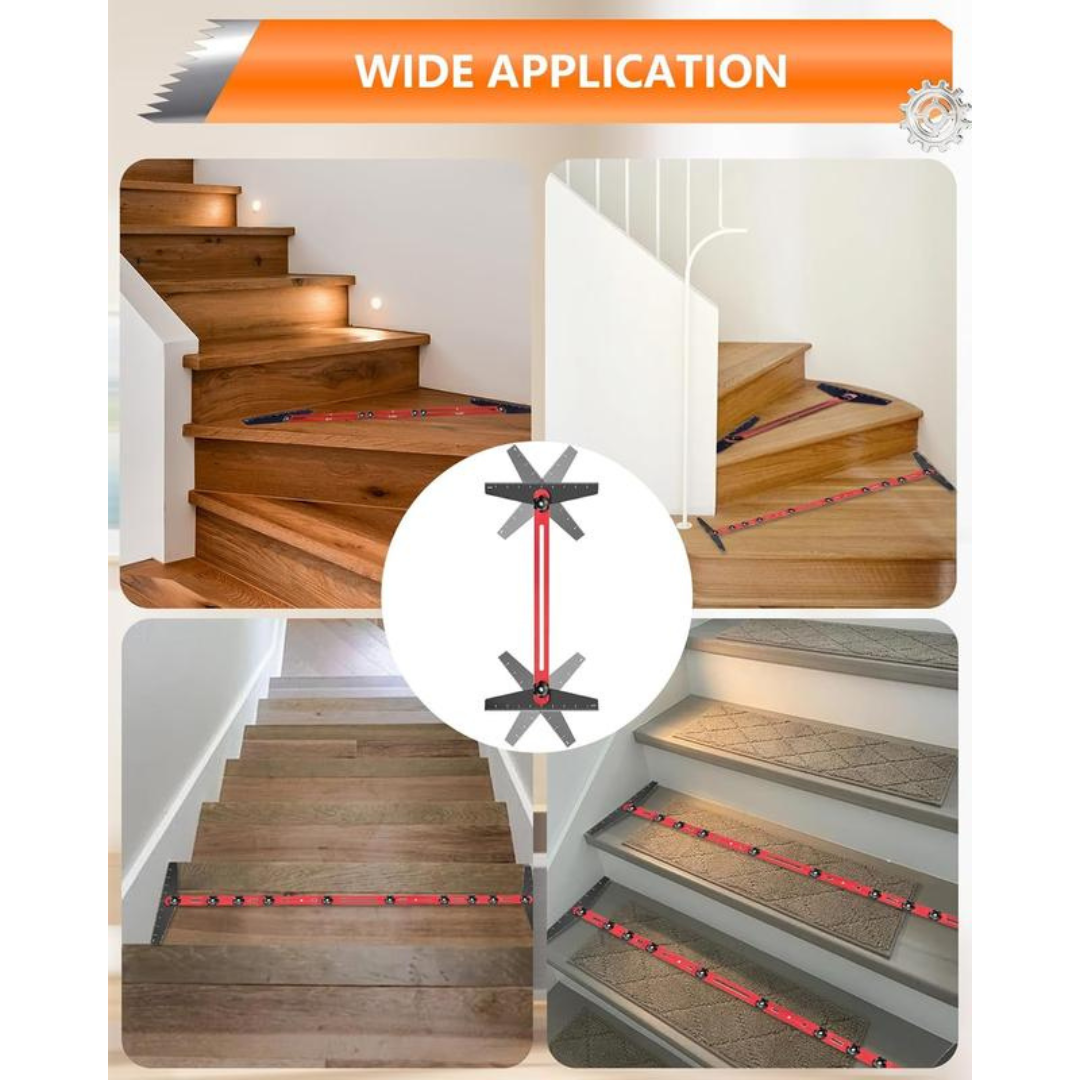

- Recommended Uses: Stair Treads, Risers, Shelves, Cabinets, Flooring & Window Sills
- Suitable For: Carpentry, Woodworking, Remodeling & DIY Projects

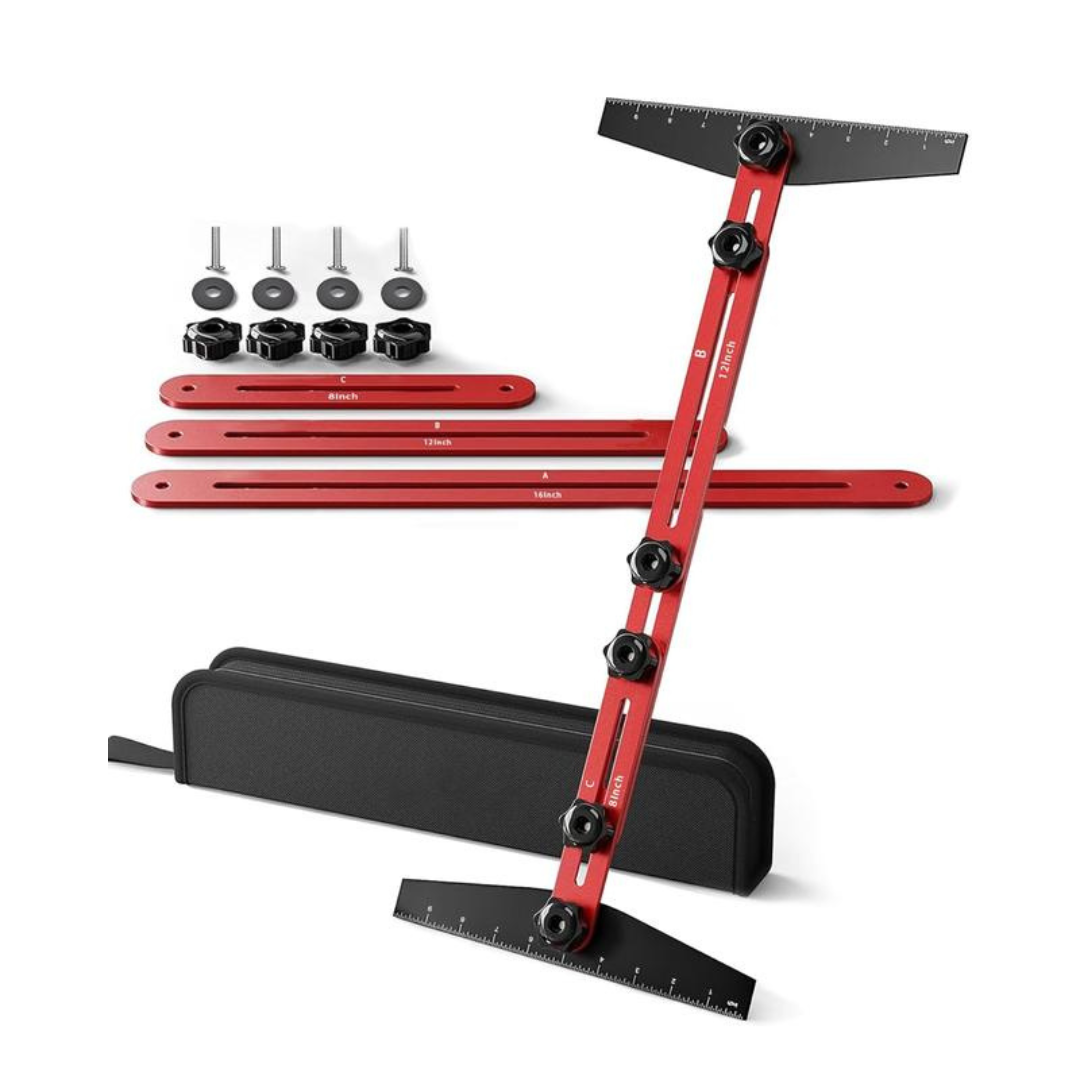

What's Included
- 2 × 16-Inch Extension Bars
- 2 × 12-Inch Extension Bars
- 2 × 8-Inch Extension Bars
- 2 × Adjustable End Plates
- Locking Knobs & Connecting Hardware
- Rubber Gaskets
- 1 × Storage Bag
- 1 × StepGuide Template Set
❓ How to Use
❓ How to Use

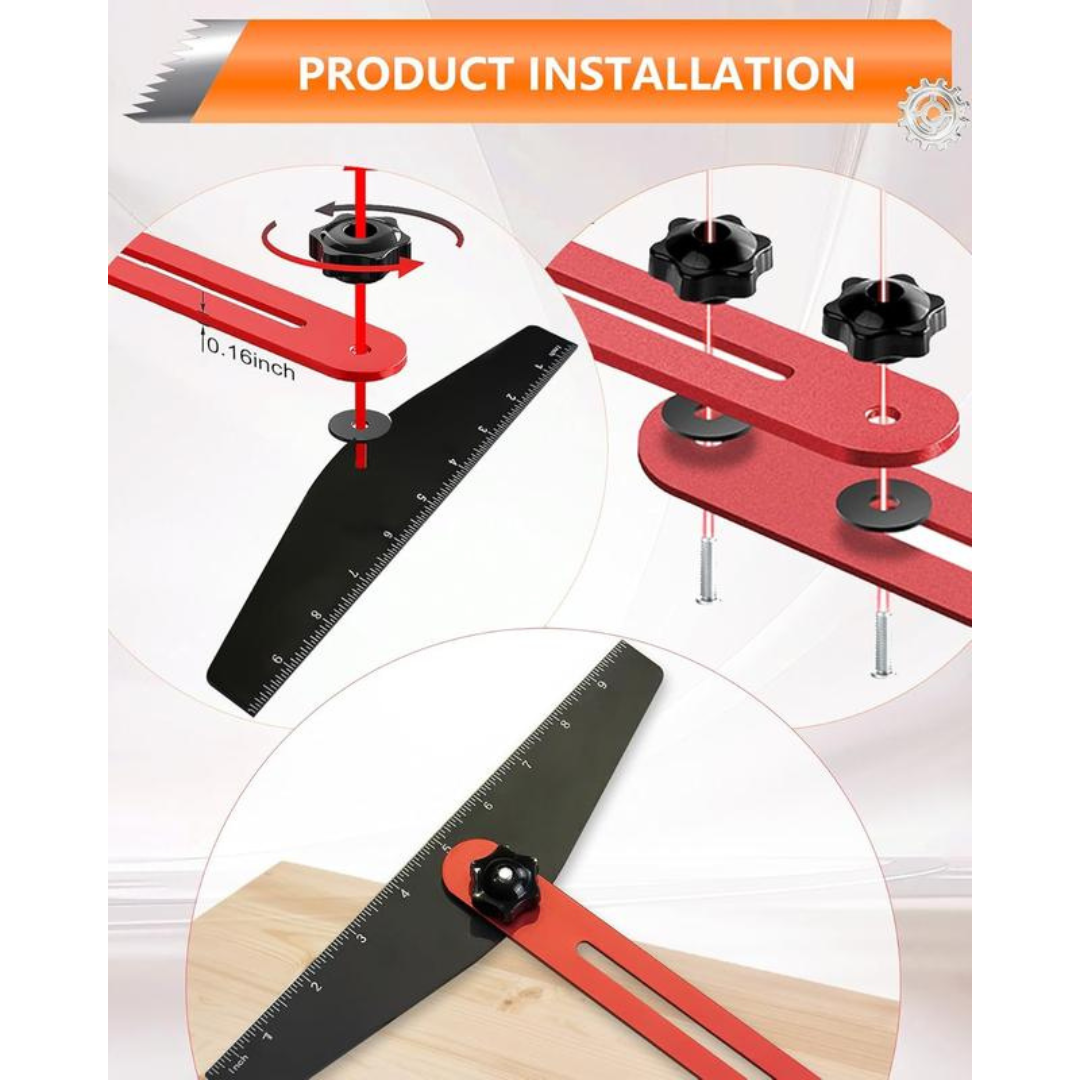

- Choose Your Length – Connect the appropriate extension bars to configure the StepGuide Template for the space you need to measure.
- Place the Template – Position the tool directly inside the stair tread, shelf, cabinet, or other opening.
- Adjust the End Plates – Rotate each end independently until it sits flush against the adjoining surface or corner.
- Extend to Fit – Slide the connected bars outward until both ends accurately follow the space being measured.
- Lock the Shape – Tighten the adjustment knobs so the length and angles remain securely in position.
- Transfer the Template – Carefully move the locked tool onto your board or other material and trace along the end plates.
- Cut to the Markings – Remove the template and make your cut along the transferred lines for a more accurate fit.
Measure the Space. Transfer the Shape.
Capture tricky lengths and angles with the StepGuide Template, giving you a straightforward way to move from measurement to marking without unnecessary calculations.
Better Fits Start With Better Measurements
From stair treads to built-in shelving, accurately capture irregular spaces before making the cut that counts.
Designed for More Confident Projects
98%
appreciated the ability to capture length and angles with one adjustable template.
95%
enjoyed the flexibility of the modular extension system.
90%
found the tool useful for reducing repeated measurements during woodworking projects.
Results based on 90-day user experience.
Measure Once, Then Transfer With Confidence
Not every staircase, wall, or cabinet opening is perfectly square—and that's where the StepGuide Template earns its place in your toolbox. Its adjustable end plates capture irregular angles while modular extension bars adapt to different project widths. Once everything is fitted and locked, simply transfer the shape onto your material and prepare your cut, helping make stair installations, shelving, cabinetry, and other woodworking projects faster and more straightforward.
| Zyntric | Others | |
|---|---|---|
Capture Length & Angles Together |
||
Full 360° Angle Adjustment |
||
Adjustable From 10.4 to 60 Inches |
||
Durable Aluminum Construction |
||
Clear Laser-Etched Scale |
||
Built for More Than Stairs |
Testimonials
FAQ
What is the measuring range of the StepGuide Template?
What is the measuring range of the StepGuide Template?
The StepGuide Template can be configured for measuring lengths from approximately 10.4 inches up to 60 inches using its modular extension sections.
Can it measure irregular angles?
Can it measure irregular angles?
Yes, the end plates offer 0°–360° adjustment, allowing them to conform to angled and out-of-square corners.
Is it only designed for stair treads?
Is it only designed for stair treads?
No, it can also be used for risers, shelving, cabinets, flooring, window sills, closets, and other woodworking or renovation projects.
What are the extension sizes?
What are the extension sizes?
The modular system uses 8-inch, 12-inch, and 16-inch extension sections that can be combined according to the size of your project.

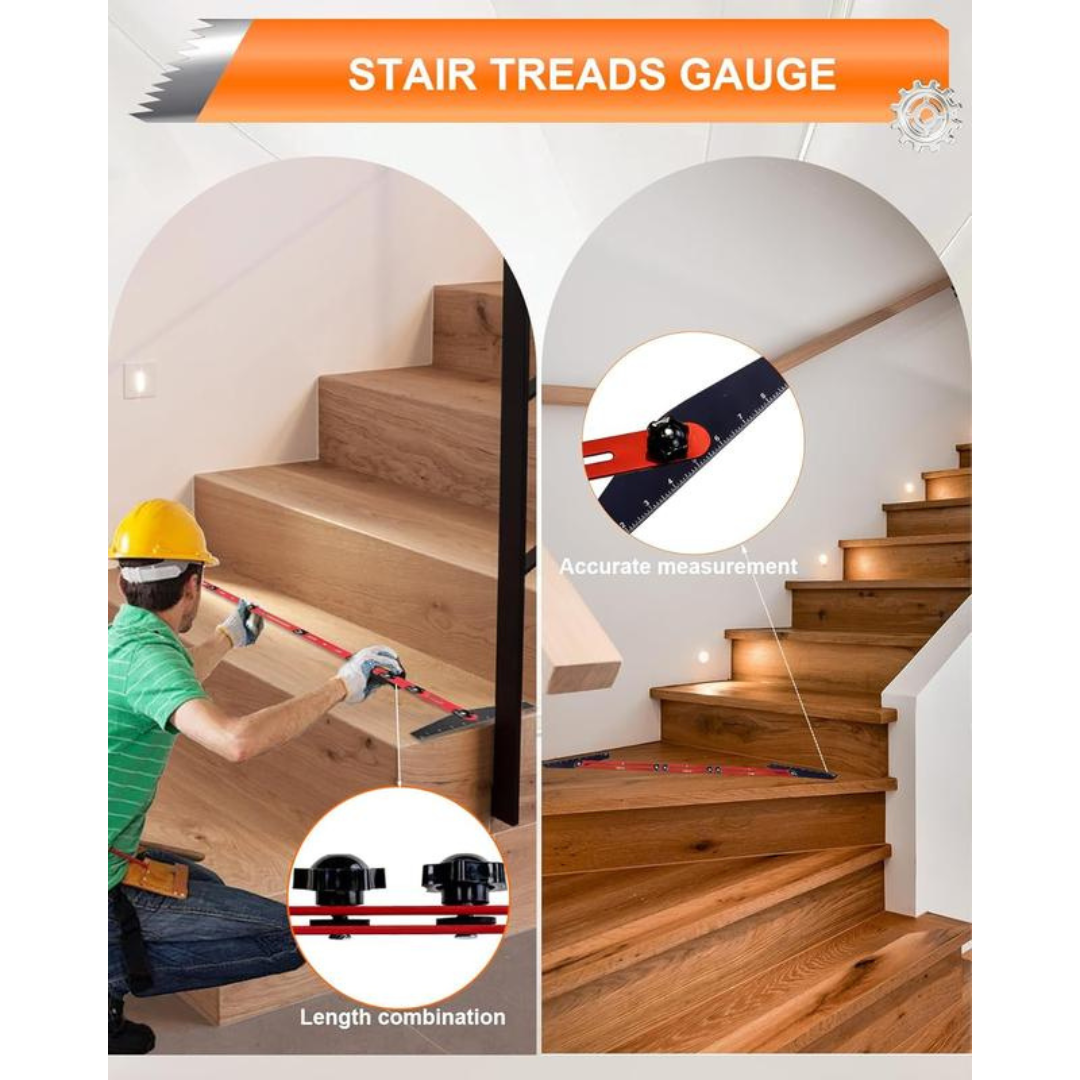

How does it help when cutting stair treads?
How does it help when cutting stair treads?
You can fit the template directly into the opening, lock its width and end angles, then transfer that shape onto your tread material before cutting, reducing the need for separate angle calculations.
